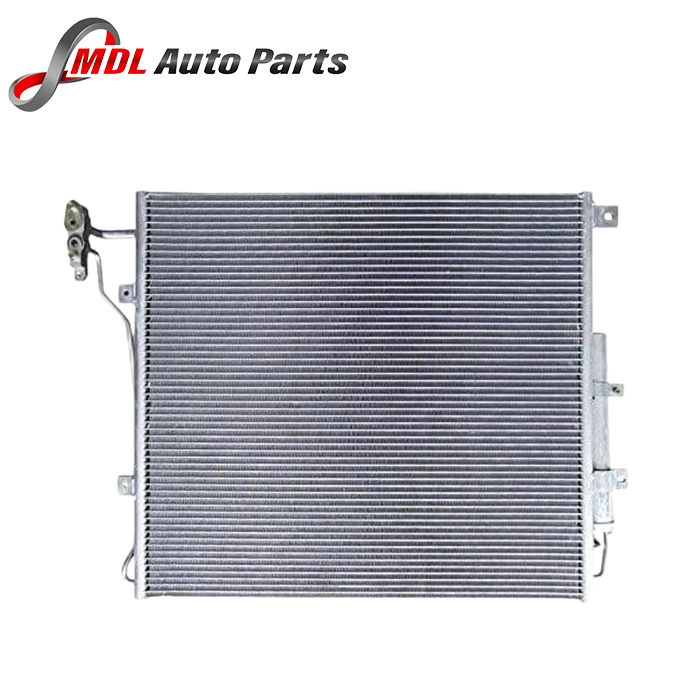

Condenser & frame assembly air conditioning JRB101120

Description

RANGE ROVER 1994 – 2001 CLASSIC

JRB101120, also known as theFrame Assembly, is an essential part in air conditioning systems. It is essential to the cooling process, especially in HVAC and automotive applications. This assembly consists of the frame that holds the condenser in place within the system and the condenser itself, which transforms refrigerant vapor into a liquid state.

2. Functions of the Condenser

2.1 Heat Exchange:

High-pressure, high-temperature refrigerant vapor dissipates heat and turns into a high-pressure liquid with the help of the frame

2.2 Refrigerant State Transition:

The vapor travels through a web of tubes or coils as it enters the frame. In this process, heat from the surrounding environment causes the refrigerant to condense into a liquid condition.

3. Assembling the Frame

3.1 Structural Support:

The  frame ensures its structural integrity and keeps it firmly in place inside the air conditioner.

3.2 Mounting and Installation:

The frame assembly ensures stability and performance by making it easier to mount and install the condenser correctly inside the entire air conditioning system.

3.3 Material and Design:

Sturdy materials like steel or aluminum are used to make frames, which are designed to withstand temperature swings, vibrations, and other environmental stresses.

4. Parts and Assembly

4.1 Condenser Coils/Tubes:

Typically composed of copper, aluminum, or alloys, these parts facilitate effective heat transfer and refrigerant condensation.

4.2 Frame Structure:

The frame assembly, which frequently has a design, is made up of panels, support bars, or brackets intended to firmly hold the  in place.
